Menu: Measure

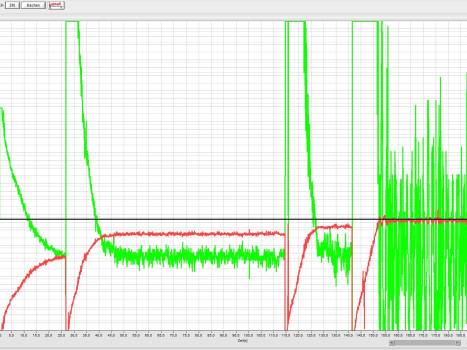

All binary and analog process data, for example the signal states of the sensors, process fittings and the pump, can be displayed graphically and evaluated directly. Functions such as selecting the measurement channels, adjusting the test time or cursor evaluation with zoom function are available for recording the sensor characteristic curve and determining a step response.

Menu: Characteristic curve
Examine the characteristic curve of an actuator (e.g. pump or proportional valve) from different perspectives (voltage to flow, flow to pressure, pressure to voltage).

Menu: 2-point controller
Typical applications are level and temperature controlled systems.

Menu: Continuous control
Experiment, configure and optimize control processes (P, PI, PD or PID controllers) with an immediate effect on the process. Control loops can be operated at the click of a mouse. Easy documentation of the control parameters is possible. The measured values and curves can be comprehensively documented. The block diagram can be displayed as a function menu for all continuous controllers with current numerical values.

Settings
Parameterization of sensor values with factor and offset for displaying the physical variables as well as signal attenuation via mean value filter for the analogue input signals. Display of the physical value in the variable unit field. Further setting options include inverting the controller sense, Y offset for continuous control and selecting the simulation mode.

Industrial controller functions
System operation as in a process control system. Setpoint values can be specified and warning limits displayed, and manual/automatic controller switching is possible.

Simulation
A simulated process model illustrates the process identically to the operation of the real hardware.
