DC wattmeter
Discover potential savings
The first step is to measure power consumption.

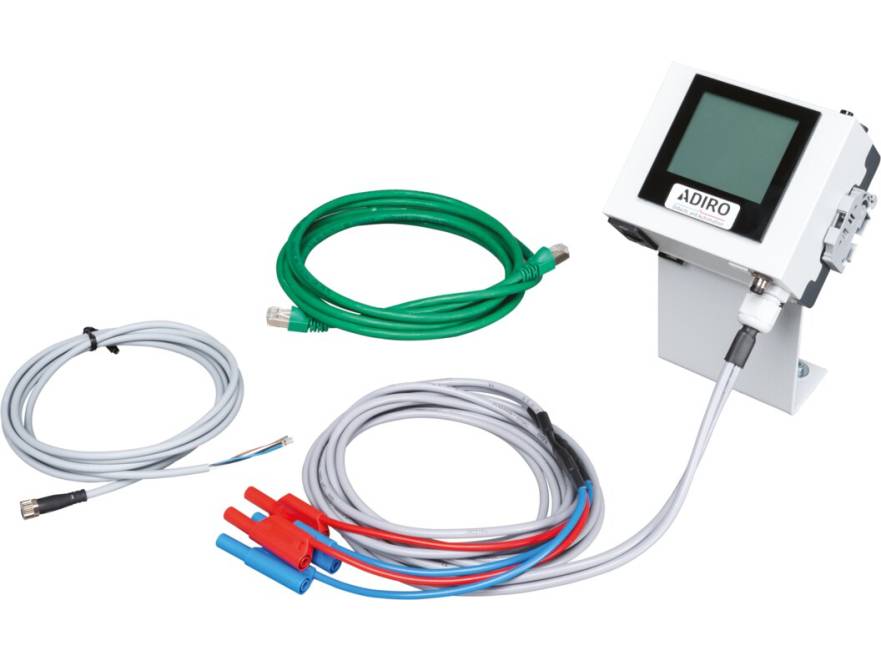

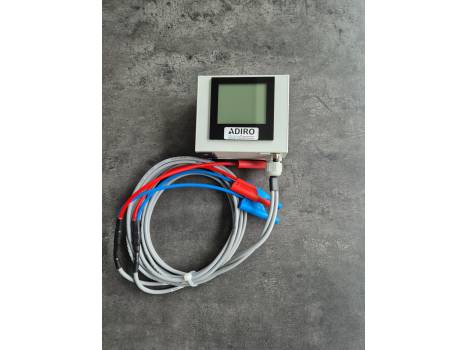

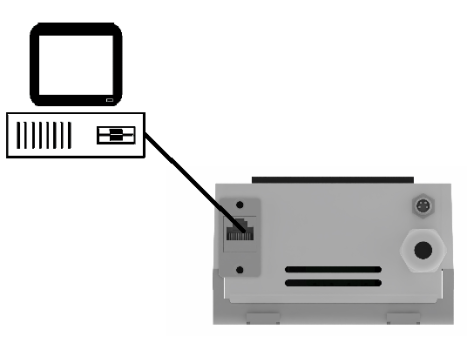

The DC wattmeter is an intelligent measuring device for training facilities with a 24 V DC voltage supply and up to 120 W power consumption. All measured values can be read out by data transmission via the integrated Ethernet connection. The power consumption is displayed as an analog signal in a range of 0 ... 10 V DC or 4 ... 20 mA.
Details
The standby consumption over time plays an important role. The sensitivity goes so far that the switching of the sensor signal can be detected via the current consumption.

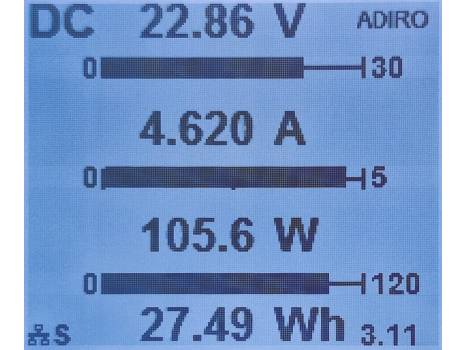

The DC wattmeter offers a high resolution of the measured values.

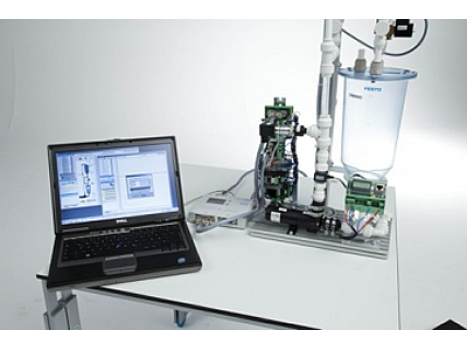

The consumption values can be switched between current and total power. The connection technology with screw terminals and the housing with top-hat rail adapter ensure practicality. The reverse polarity protection prevents defects in the event of incorrect wiring. Wiring to terminal contacts can be carried out both for individual loads and for the entire MPS PA station.
