Modular Model Factory - From training system to customized test facility

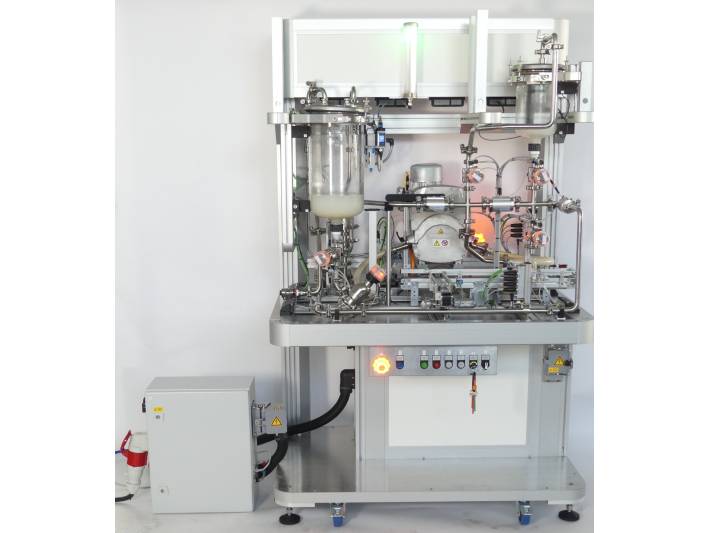

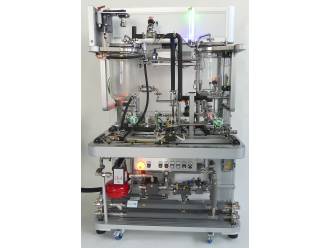

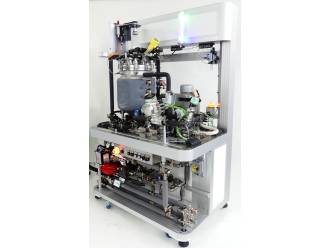

This modular model factory was created in cooperation with our end customer. This system can be flexibly expanded. Realized modules:

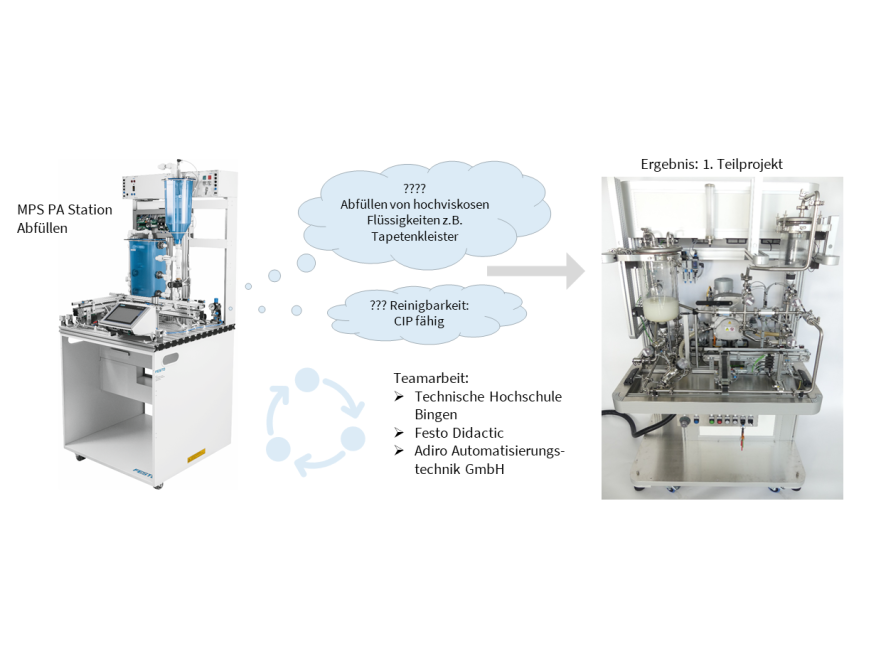

Further modules in planning or under construction. These flexible system modules have been developed from a didactic training system MPS PA 204 and are based on a real process.
Highlights
- Quick couplings for connecting the upstream module and CIP module
- Stainless steel piping with TriClamp connectors in accordance with ASME BPE
- Machine frame with integrated control cabinet and bus housing
- Operating unit with RFID operating mode selector switch
- Process control with Beckhoff CX5410
- Multi-contact sockets
Module template
Highlights
- Glass container approx. 10 l with capacitive fill level monitoring and overflow protection
- Peristaltic pump
- Pinch valves with position monitoring
- Diaphragm valve with position monitoring
- Festo pneumatic valve terminal VTUG
Module reactor
Highlights

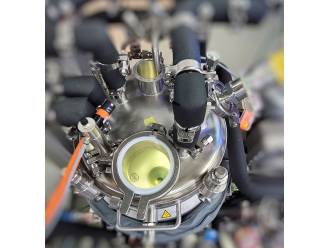

- Stainless steel reactor with sight glass and lighting
- Peristaltic pump with SEW frequency converter
- Pinch valves with position
- monitoring Diaphragm valve with position monitoring
- Festo pneumatic valve terminal VTUG

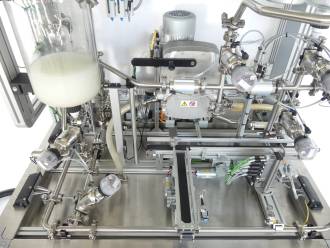

Filling module
The filling module is designed for conveying liquid media and suspensions.
Highlights
- Glass container production according to Adiro design
- Peristaltic pump
