EduKit PA
What is the EduKit PA
- Edu = Educational/Training
- Kit = Project kit for plant construction
- PA = Processautomation
- Experimental kit for learning about plant
engineering and the automation of process
engineering
Key benefits
Mobility
- Easy to handle
- Transportable
- "Ready to use“
Flexibility
- Get started without complex control technology
- Easy to use and expandable
Swiftness
- Setup time for experienced users: < 5 min.
Typical Examples of Use
Process automation in the chemical and food industry
- Flow control in filling and dosing systems
- Level control in mixing and acid tanks
- Control of mixing ratios
Water and wastewater management
- Flow measurement in pipelines, e.g. inlet to the sewage treatment
plant - Level control of a rainwater overflow basin
- Monitoring and control of pH values and conductivity
Teaching Concept
Experiential Learning
- Gaining insights through personal initiative
- „Learning by Doing“
Guided Learning
- Working purposefully with a workbook
Discovery Workshops
- Interdisciplinary STEM Learning
- Everyday examples
Learning scenarios
- Introduction to process and control technology and understanding of the interaction of the individual components in a networked system
- Entry without complex control technology
- Manual measuring, control and regulation of level, flow and pressure on a system.
- Pressure, flow and ultrasonic - with sensors and the I/O connection board for automated measurement and control
Further information
The EduKit PA is ideal for limited space and small budgets as well as for an introduction to measurement and control technology. Energy and resources can be saved by using control technology. On the way to efficient production, individual steps must be planned, processes understood and cross-checked. The Basic and Advance project kits make it easy and safe to get started.
The EduKit PA system can be flexibly controlled using different control variants thanks to the standard interface of the inputs and outputs.
During the live presentation, we will demonstrate the impressive functions and show you how easy and intuitive it is to use. The video shows an excerpt of the most important features so that you can experience the versatility and user-friendliness of our product at first hand. The product was developed to make your everyday life easier and increase your productivity.

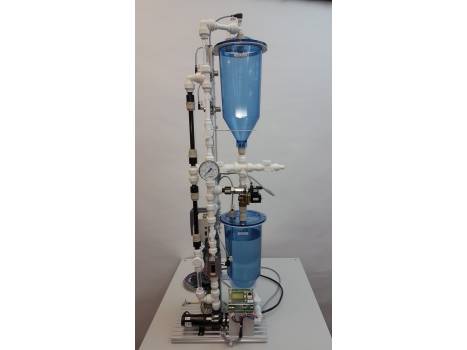

EduKit PA Basic
The EduKit PA Basic is a versatile project construction kit that is ideal for getting started in the world of automated processes. It teaches the basics of project work and the fundamentals of control technology - manual measurement, control and regulation - without a PC and without complex control technology.
EduKit PA Advanced
In order to provide learners with even more comprehensive skills in the field of modern technology, the EduKit PA Basic is now supplemented by the EduKit PA Advanced, which focuses on automated measurement, control and regulation, sensor technology and electrical interfaces. This extension offers a deeper insight into the functionality and application areas of sensors as well as the basics of measurement and control technology.
Flexibly and creative expandable
DC wattmeter
Discover potential savings
→
IoT kit for MPS PA
PA goes IoT
→
Let your imagination run wild with the EduKit PA System
- Actuators (pinch valves, 2-way ball valves, etc.)
- Sensors (photometers, float switches, etc.)
- Filter units (flow-through filters, vacuum filters, etc.)
- ...
A small excerpt from the possibilities.

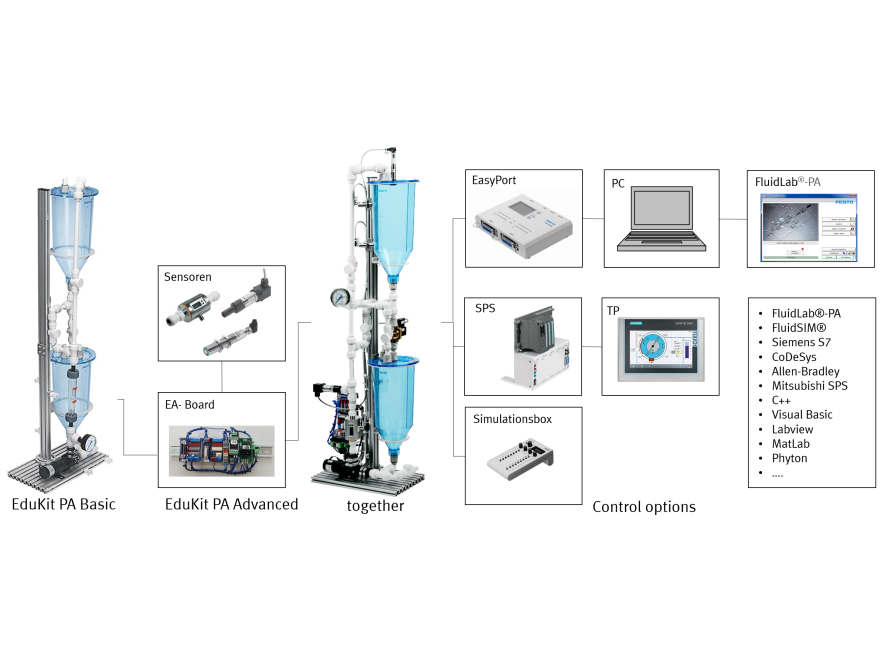

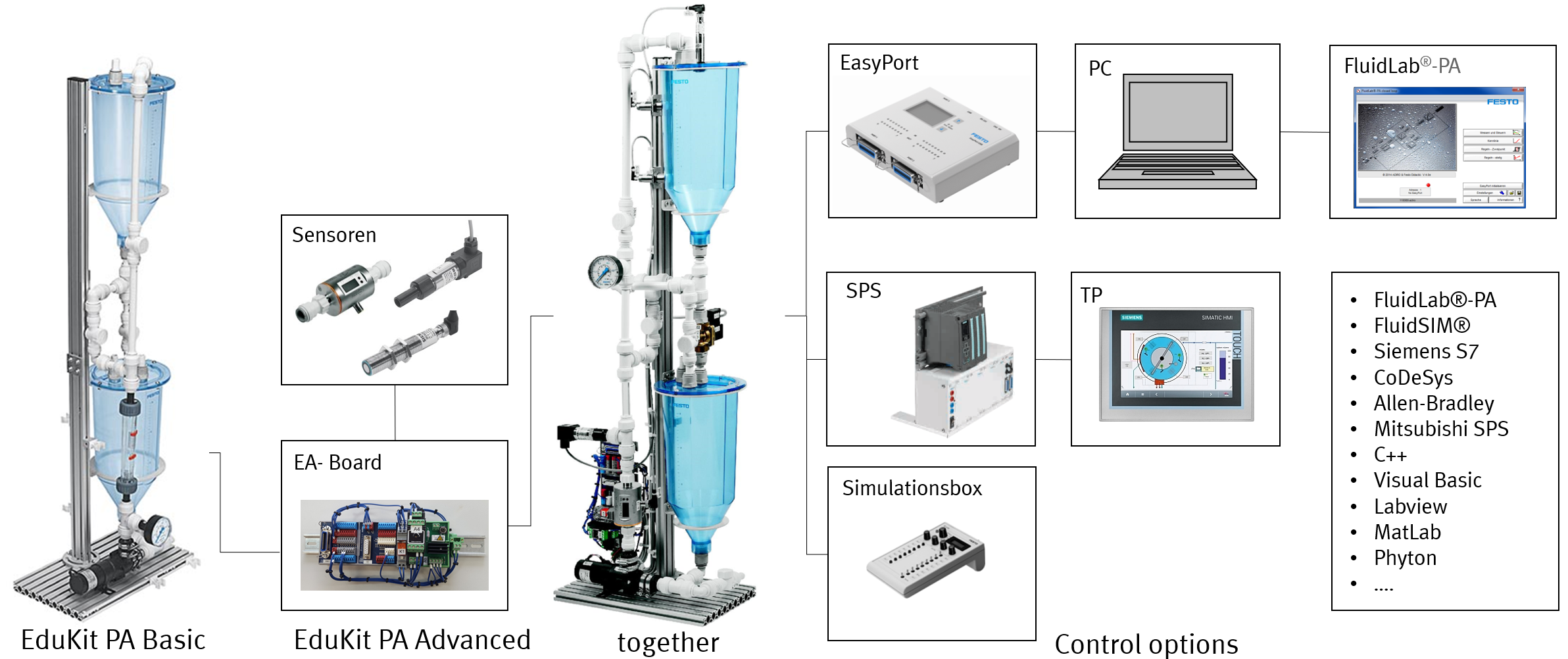

Control options
Manual Control Panel (EduKit PA Basic) Learning without a PC
Connection Flexibility (EduKit PA Advanced) SysLink interface on the I/O board.
Simulation Box
Test the I/O configuration without a PC
EasyPort USB
The Open Interface for the PC World
Control System (PLC)
Control as in production
